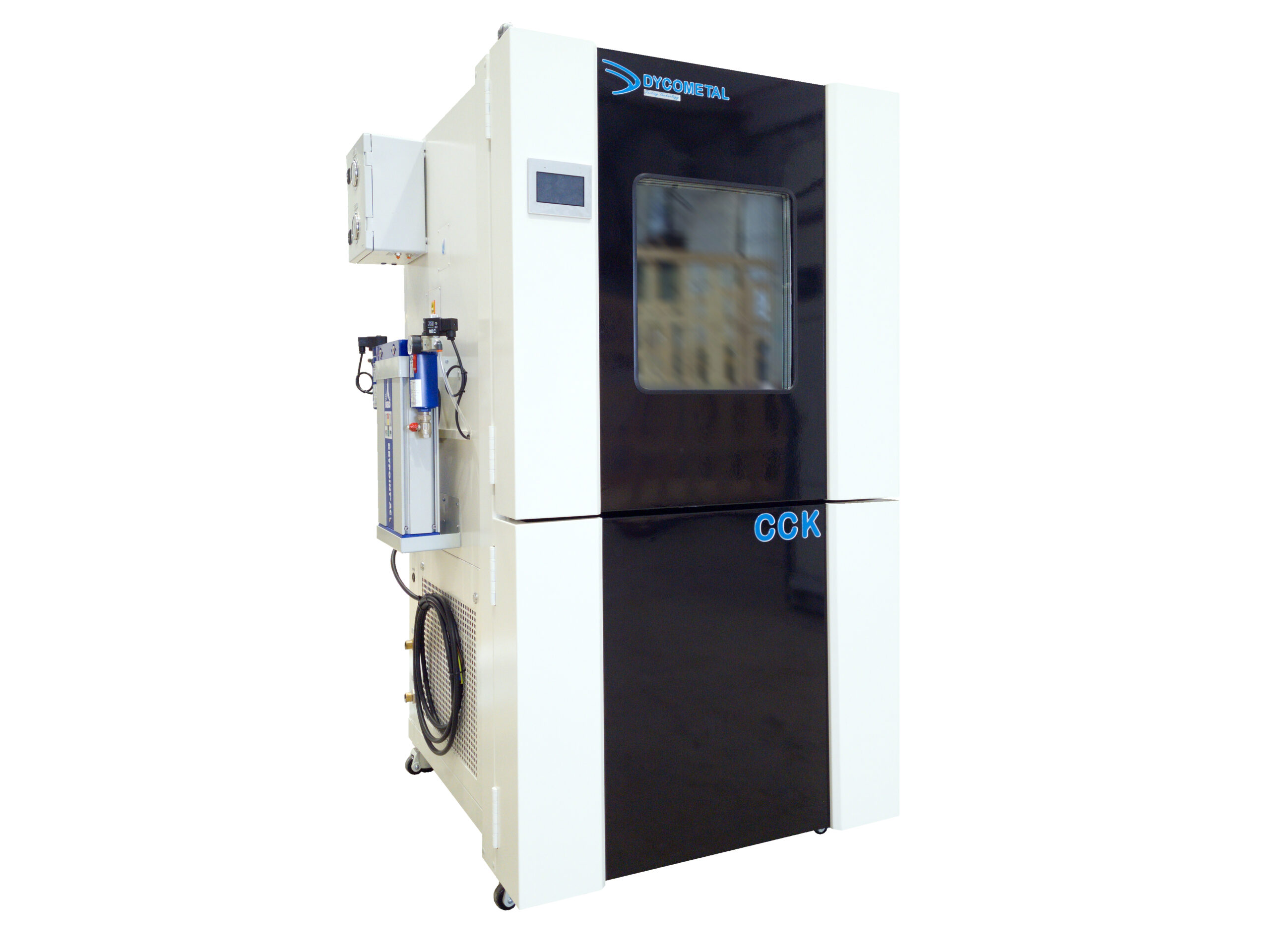

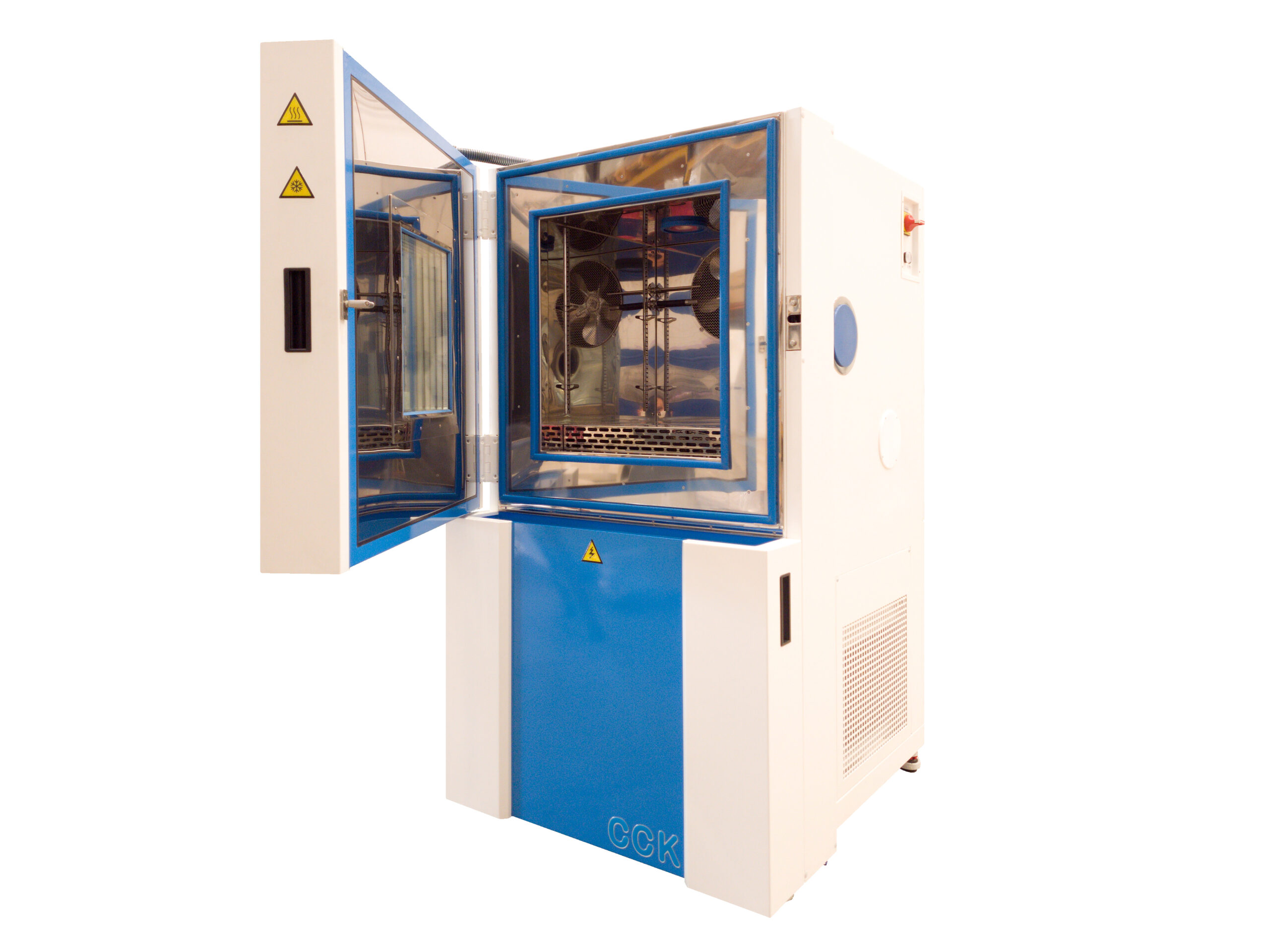

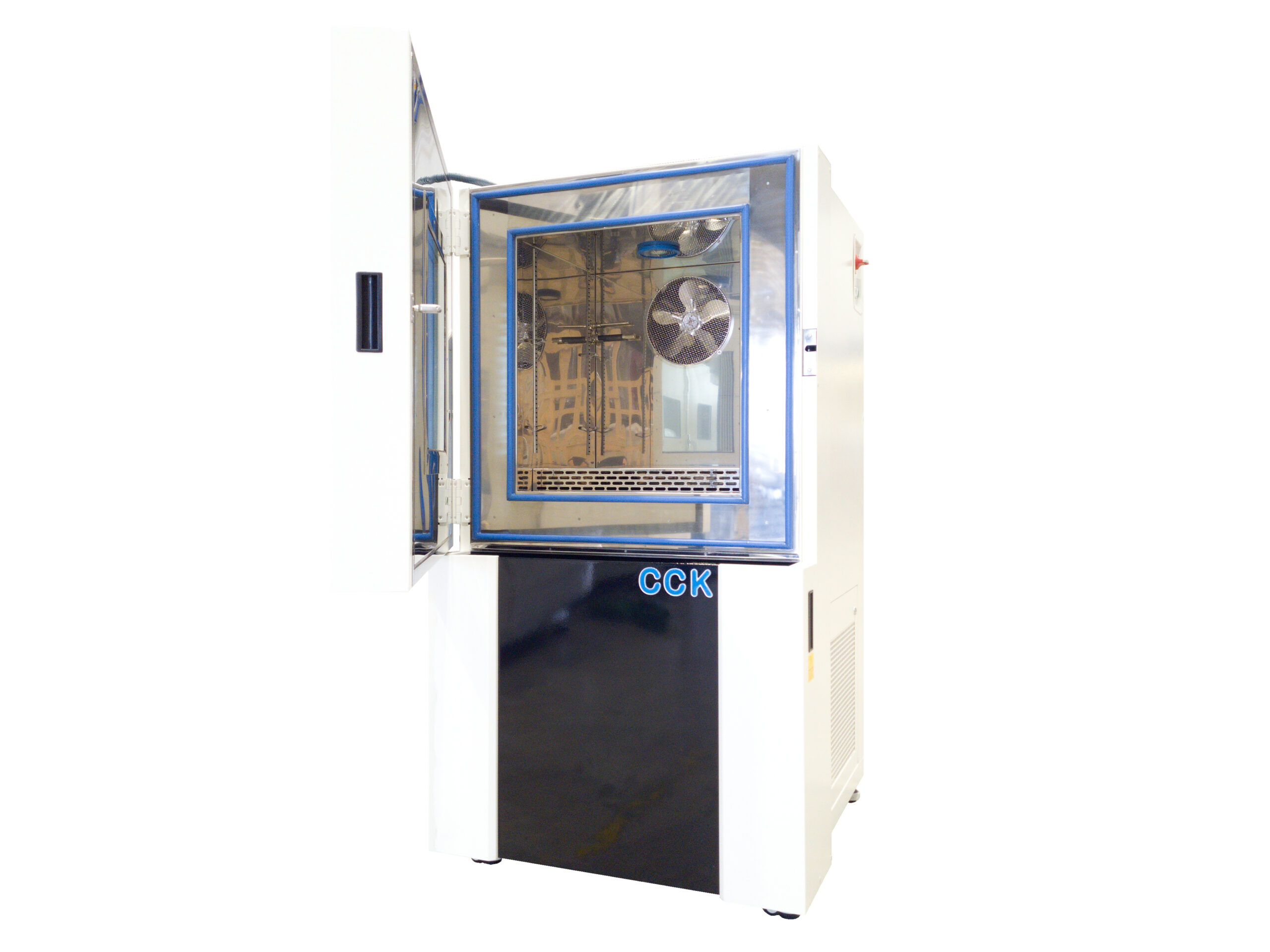

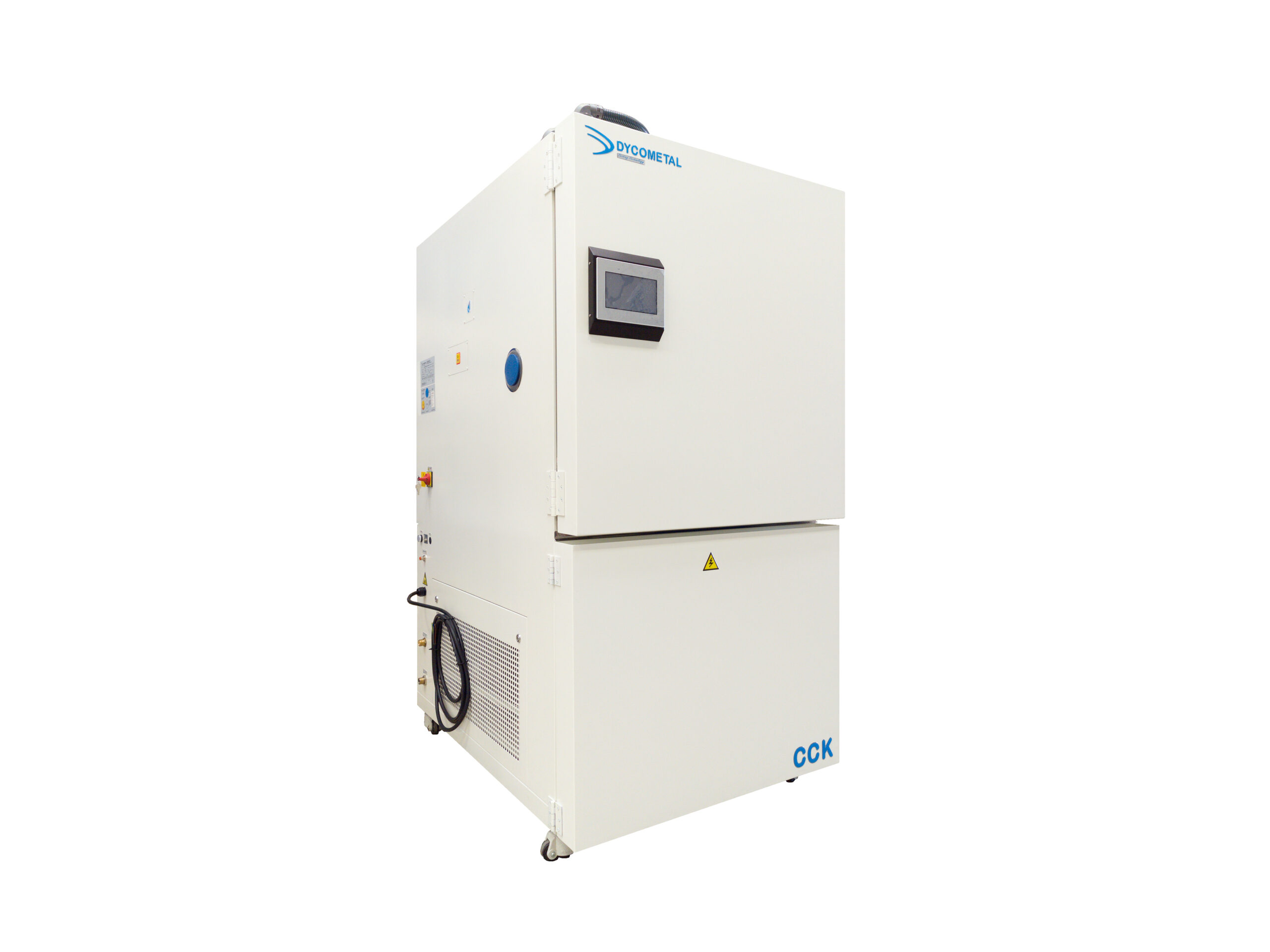

HIGH GRADIENT CLIMATE CHAMBER / STRESS SCREENING CCK/CETM-T ESS SERIES

The CCK-T series climatic chambers combine over 35 years of experience in the manufacture of climatic chambers with new innovative features, including a graphical touchscreen display and advanced safety functions. This enhanced version of the successful CCK model offers the flexibility of the CCK series and the benefits of the CCK NG series, combined in a single, powerful climate chamber.

Specifically designed to reproduce the temperature and humidity conditions relevant to the lifetime of samples under test, the CCK-T series enables accurate simulation and lifetime testing. It is suitable for demanding tests such as ESS (Environmental Stress Screening), battery tests, solar simulations and connection to test benches.

MAIN FEATURES

• Volume: 48 to 3,000 liters
• Temperature range: -70 °C, -40 °C, -25 °C, -10 °C or 0 °C to +180 °C
• Humidity range: 10 % to 98 % rH
• Temperature stability: ±0.3 °C to ±0.5 °C
• Temperature homogeneity: ±0.5 °C to ±1.5 °C
• Humidity stability: ±1 % rH
• Humidity homogeneity: ±1 % rH to ±3 % rH

STANDARD EQUIPMENT

• New graphic control system with color touchscreen (HMI), ergonomically positioned on the door
• Intuitive, user-friendly user interface
• Data acquisition system for visualization of test profiles and control of chamber parameters
• Different security levels for users
• Ethernet communication port (TCP/IP)
• USB ports for data extraction
• Alarm management systems for improved control
• Interior made of high-quality stainless steel
• New round interior finishes for better care
• Innovative air circulation system for optimum sample handling and homogeneity
• Observation window
• Electronic lock
• New silicone weather seals
• Door with integrated handle
• Interior lighting for better visibility of the samples
• 80 mm diameter wall ducts for flexible connections
• Two height-adjustable stainless steel shelves
• Height-adjustable feet or castors (depending on model)
• High-precision temperature and humidity sensors (capacitive)
• Multi-chamber software for remote control and registration of chamber data
• Air or water-cooled condenser unit
• Use of F-gases in accordance with the new European regulation

OPTIONAL EQUIPMENT

• Additional access openings in various diameters
• Infrared window for precise measurements
• Gloves in the door for safe handling
• Additional shelves for more storage space
• Reinforced base for heavy test objects
• Special sample carriers for individual test requirements
• Noise reduction for quiet operation
• Visual alarm (1, 2 or 3 colors)
• Remote air condenser unit
• Solar simulation system for realistic test conditions
• Extraction turbine for better air circulation
• Cryogenic valves for extreme tests
• Carbonation kit for special applications
• Air dryer for constant air quality
• Dehumidification processes for specific tests
• Psycho-metric measuring system for moisture control
• Additional system for humidity control
• Sample protection thermostat for sensitive samples
• Analog or digital I/O interfaces
• Demi water tank for water management
• Water treatment systems for precise tests
