CLIMATE CHAMBER (WALK-IN)

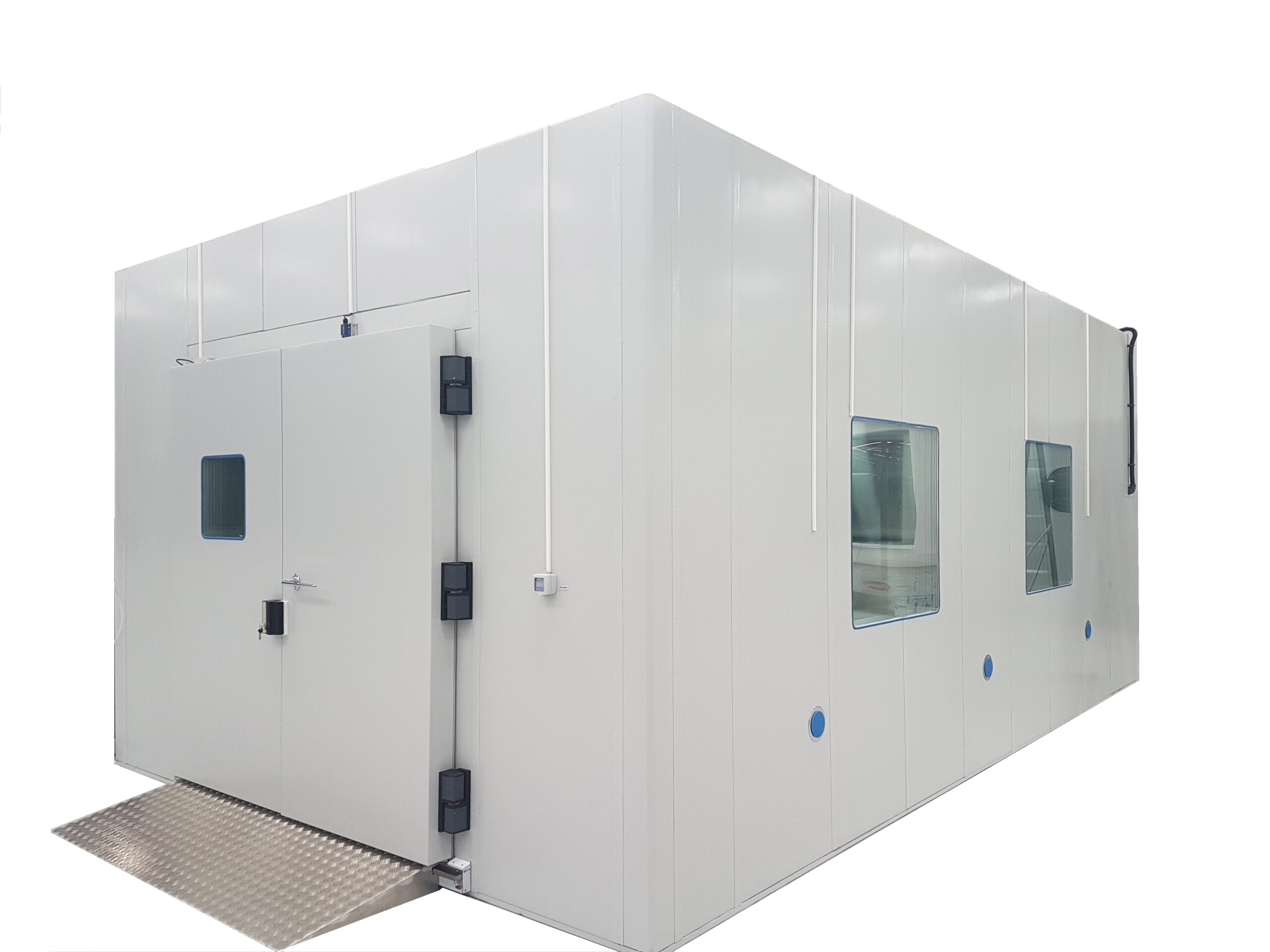

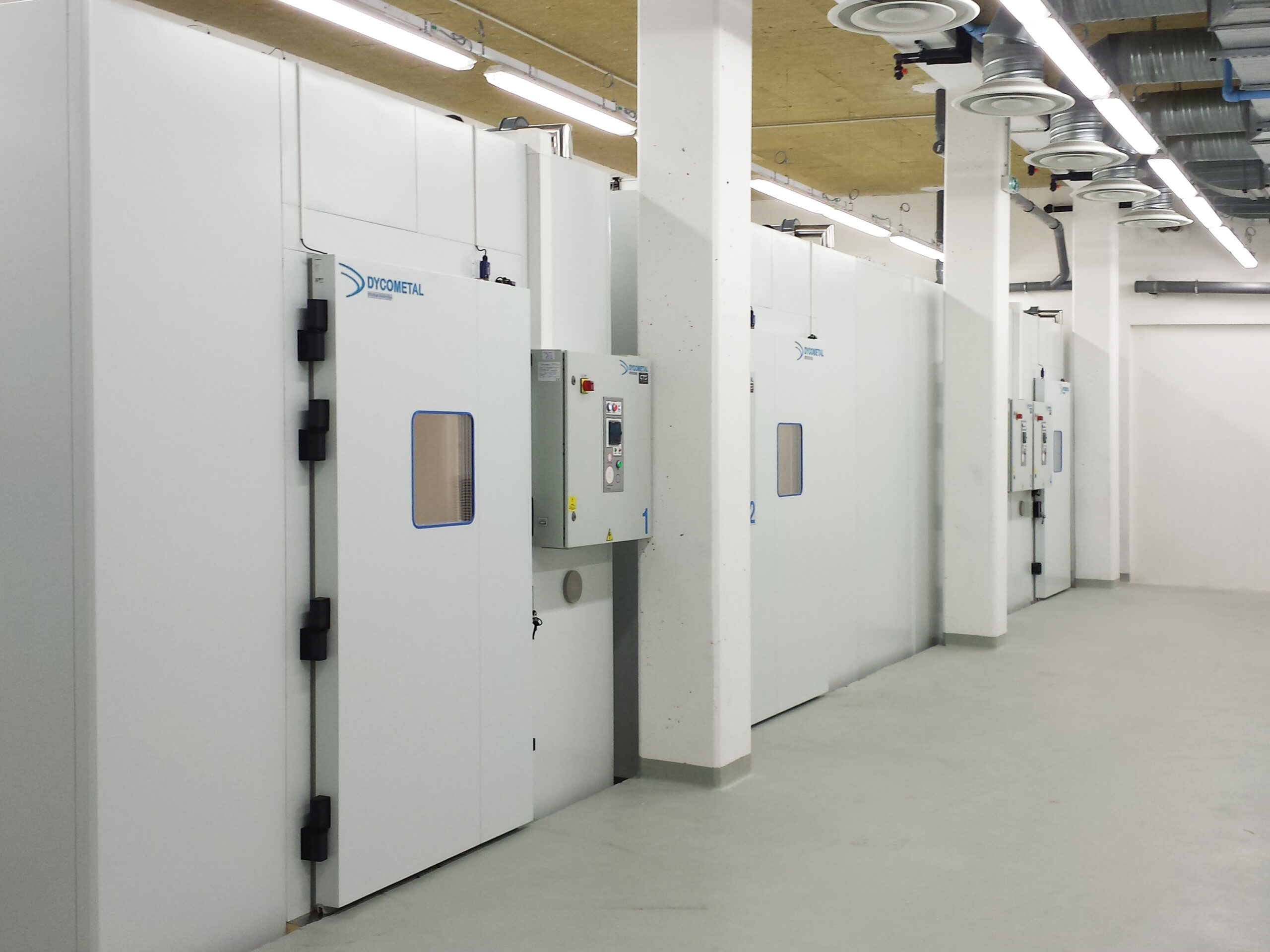

WALK-IN MODULAR CLIMATE TEST CHAMBER – MODUBLOCK

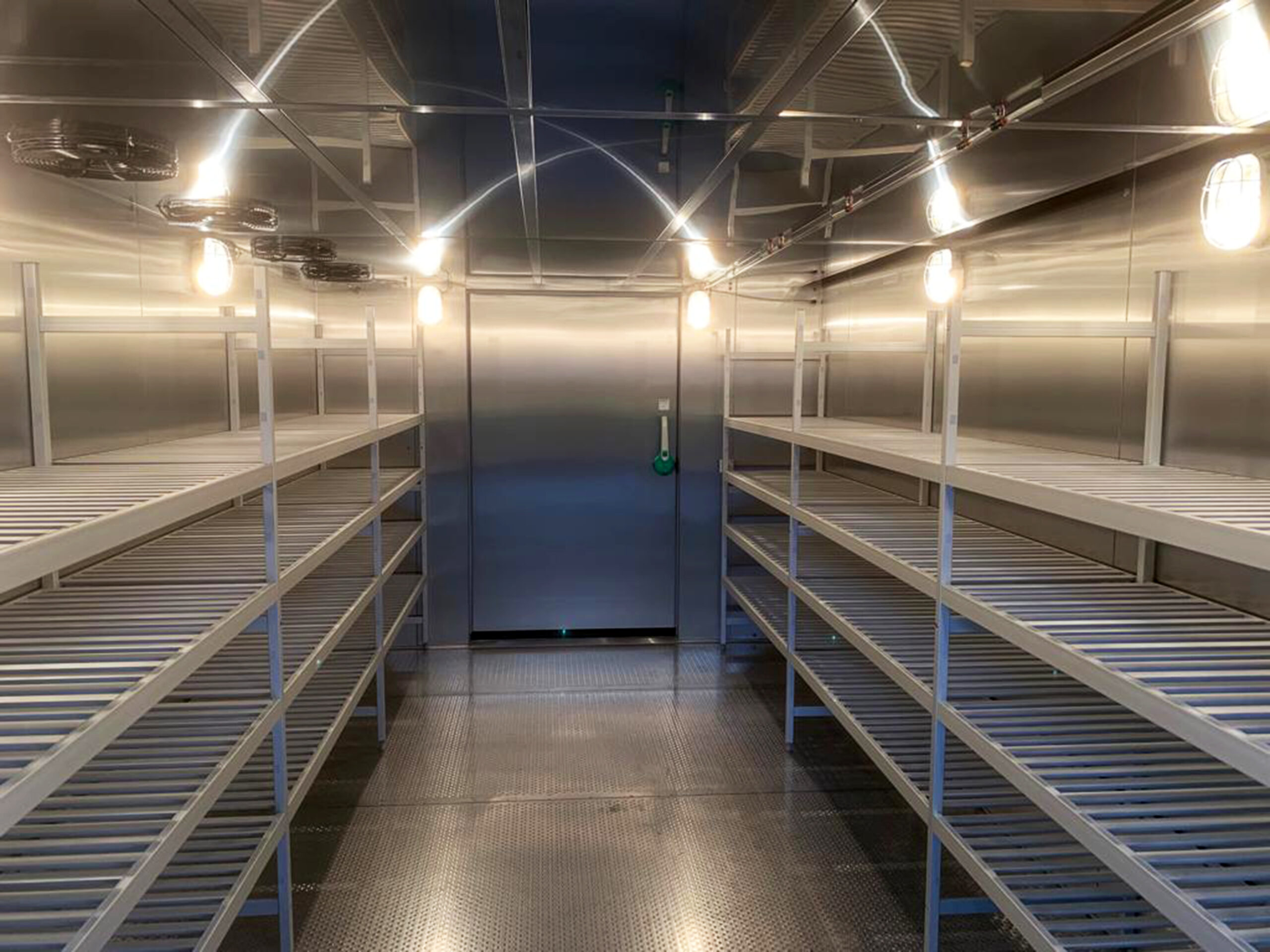

Our walk-in climate chambers are the ideal solution when test specimens are large in size, heavy in weight or in large quantities. The modular chambers are made of highly insulating panels and allow flexible installation, even in hard-to-reach places. With the innovative MODUBLOCK system, the chambers can be transported by forklift truck. The chambers are designed for temperature tests up to +90 °C and are suitable for a wide range of applications such as electronics, automotive, pharmaceuticals, plant growth and more.
TECHNICAL DATA
- Volume: from 700 to over 300,000 liters
- Temperature range: -70 °C, -40 °C, -25 °C or 0 °C to +85 °C
- Humidity range: from 20 % to 98 % r.h.
- Temperature stability: ±0.3 °C to ±0.5 °C
- Temperature homogeneity: ±1 % r.h.
- Humidity homogeneity: ±1 % r.h. to ±3 % r.h.
STANDARD EQUIPMENT
- Precise temperature and humidity control with dual controller
- High-density thermal insulation
- Interior and exterior finish: painted or stainless steel
- Door dimensions: 1800 x 850 mm with locking system and security system
- Observation window
- Interior lighting
- 80 mm access bushing
- High-precision temperature sensor and capacitive humidity sensor
- Internal emergency door opening
- Cooling unit with housing (can be placed on chamber, ceiling or machine room)
- Automated error management system
OPTIONAL EQUIPMENT
- DYCOMETAL’s ACTTA microprocessor controller with touchscreen panel
- Extended temperature range (SOLID WALK-IN)
- MODUBLOCK structure for easier transportation
- Lighting systems for plant growth or solar simulation
- Customized doors: double doors, sliding doors, lifting doors, etc.
- Gas management system
- Compressed air dryer to reduce humidity and extend the dew point range
- Height-adjustable shelving systems with polypropylene or stainless steel trays
- Additional access bushings
- Water softening or demineralization system
- Data logger: paper or paperless graphic recording system
